2023 LOOK ELEMENT AUTO 8.5′ X 20′ $13,105 (STOCK #8176)

2
Sep

2023 LOOK ELEMENT AUTO 8.5′ X 20′ $13,105 (STOCK #8176)

  • CASH PRICE: $13,105
  • CREDIT/FINANCING PRICE: $13,629

***WE DO NOT ACCEPT PERSONAL CHECKS***

MODEL: LSABA8.5X20TE2FE

THIS TRAILER FEATURES:

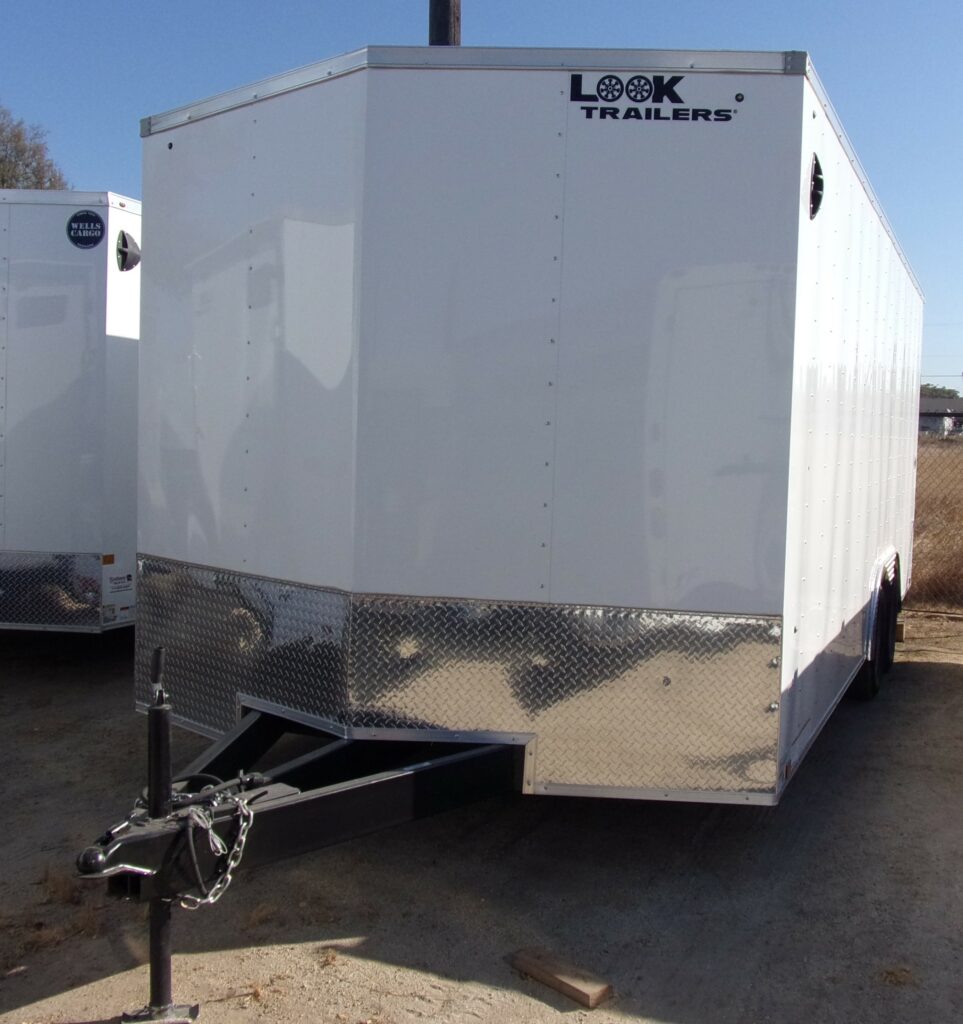

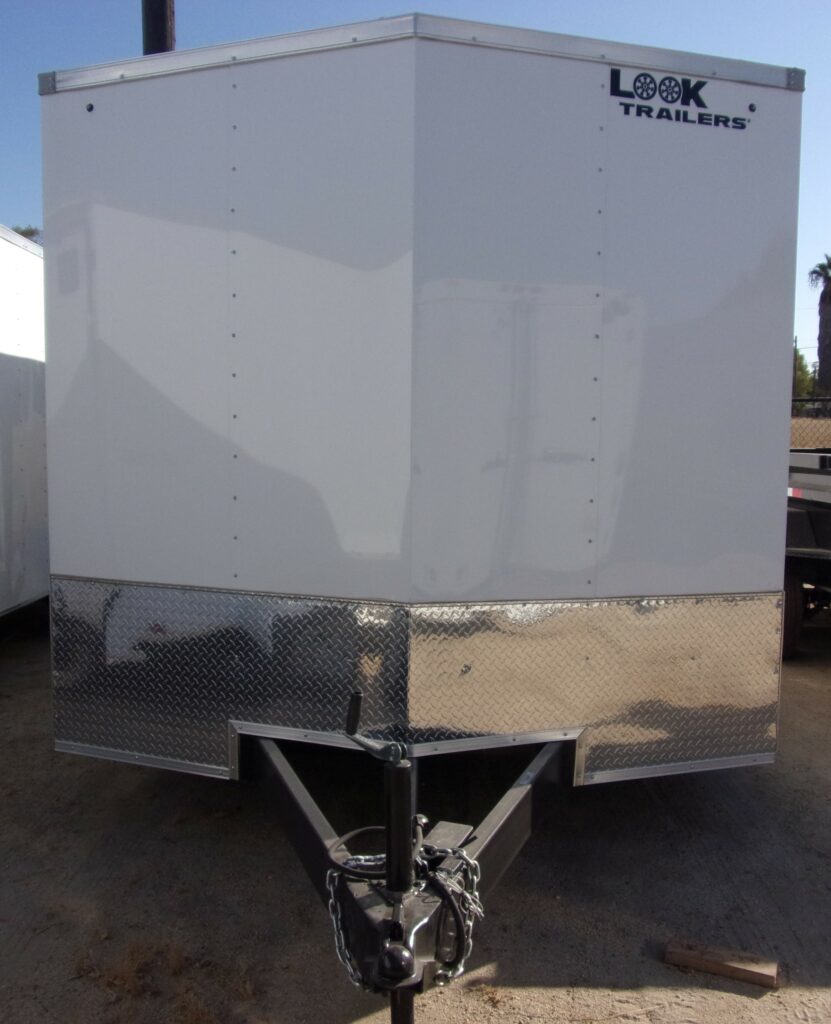

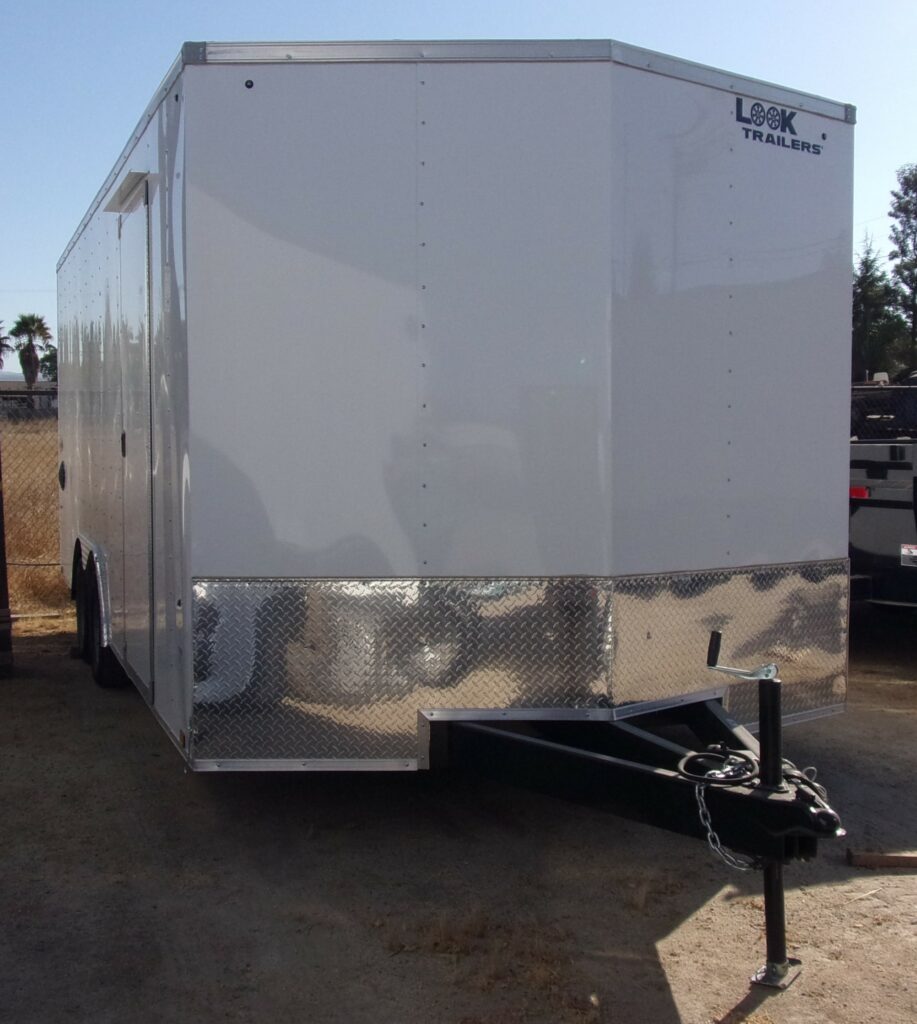

  • STYLE: ELEMENT AUTO / FLAT TOP / 18″ V NOSE
  • AXLE: TANDEM/ DROP/ ELECTRIC
  • AXLE TYPE: (2) 3500# SPRING w/SUPERLUB HUBS
  • TIRE: (4) ST205/ 75R15 5 LUG RADIAL
  • RIM: (4) SILVER MOD
  • MAIN FRAME: 2″ X 6″ TUBE/ZXMs 16″ ON CENTER
  • BEAVERTAIL: 48″ BEAVERTAIL
  • MAIN FRAME: UNDERCOATED
  • COUPLER: 2-5/16″

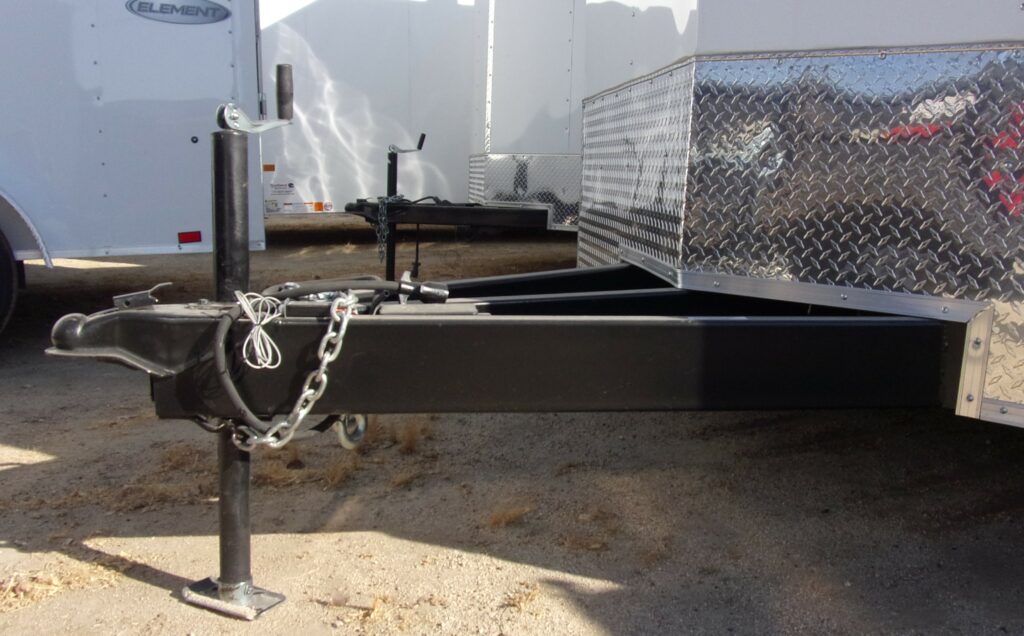

  • HITCH: 12″ EXTENDED 3 PIECE (6″ FRAME) ****UPGRADE****
  • JACK: 2000# TOP WIND w/SAND PAD
  • VERTICAL POST: 90-3/4″ V.P.H. ***6″ ADDED HEIGHT ****UPGRADE****
  • SIDEWALL: 1″ X 1-1/4″ TUBE / 16″ CENTERS / 6″ DROP WALL / 18″ V NOSE

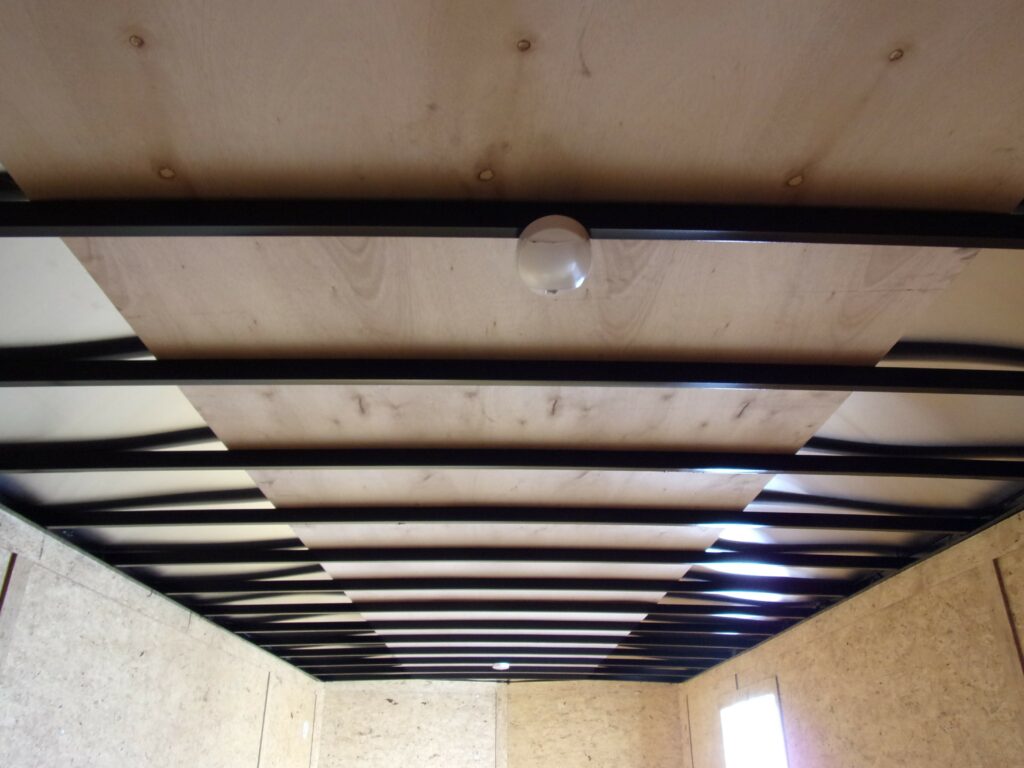

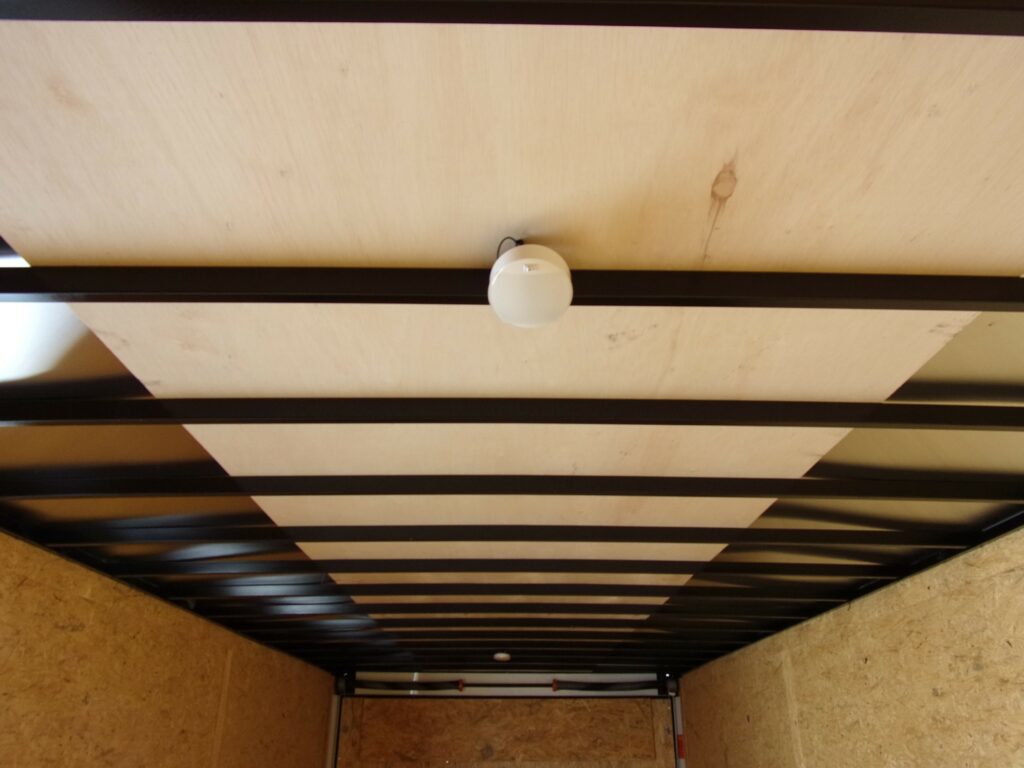

  • ROOF BOW: 1″ X 1-1/2″ SEMI CROWNED TUBE / 16″ CENTERS

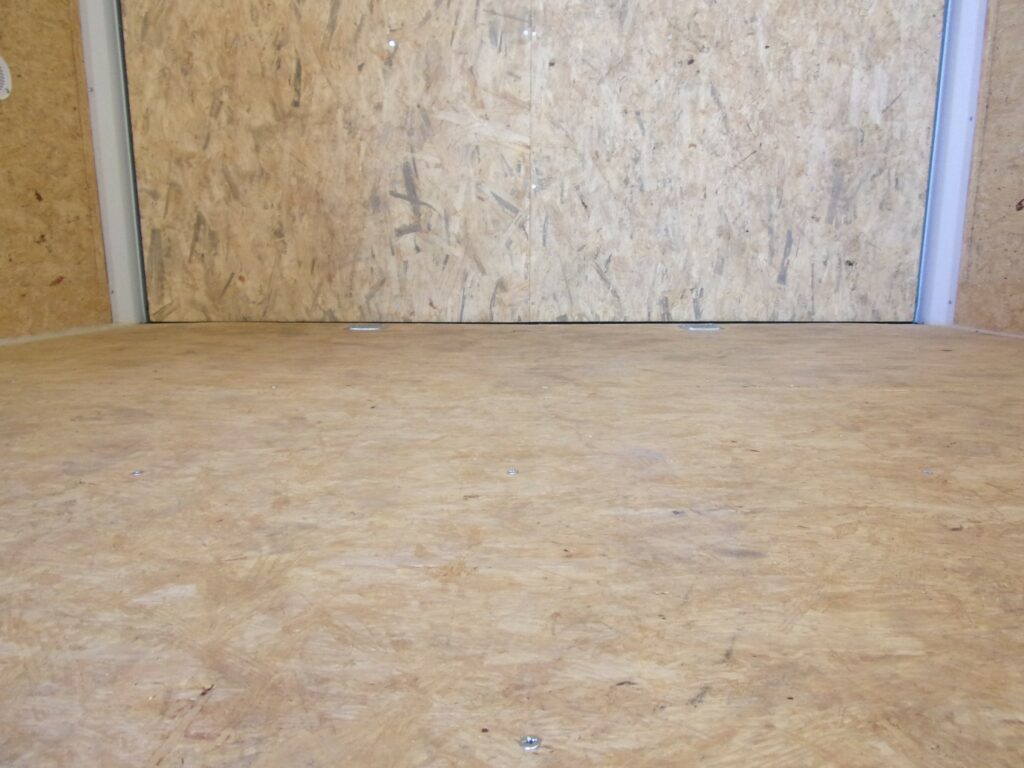

  • FLOOR: 3/4″ HIGH PERFORMANCE

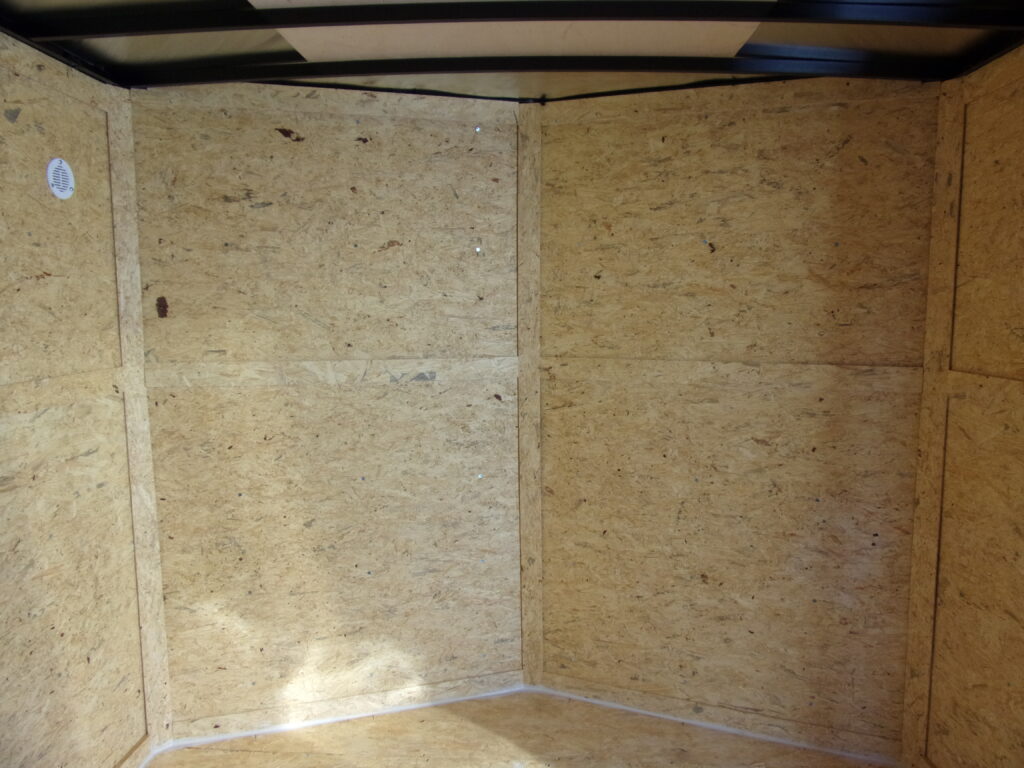

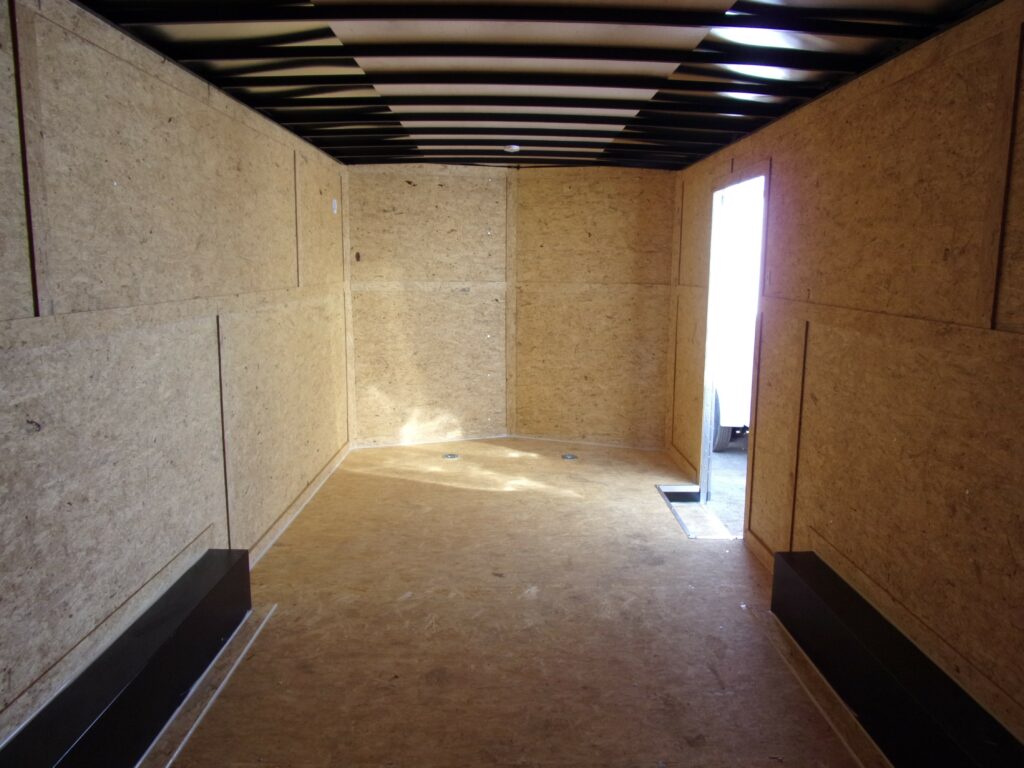

  • WALL: HIGH PERFORMANCE
  • CEILING: NONE
  • FRONT NOSE: SAME COLOR AS TRAILER
  • EXTERIOR METAL: .030 WHITE w/COLORED MATCHING SCREWS- WHERE APPLICABLE

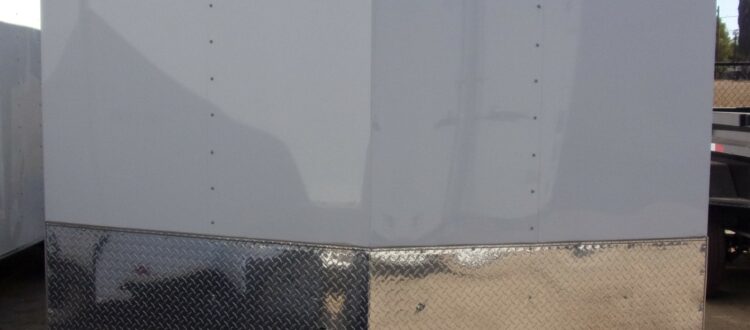

  • STONEGUARD: 24″ HIGH ATP .025 EMBOSSED
  • ROOF: 1 PIECE ALUMINUM
  • ROOF: 48″ WIDE 2.7 LAUAN RIDGE BOARD
  • REAR HOOP: SAME COLOR AS TRAILER
  • LICENSE PLATE BRACKET: MOLDED PLASTIC

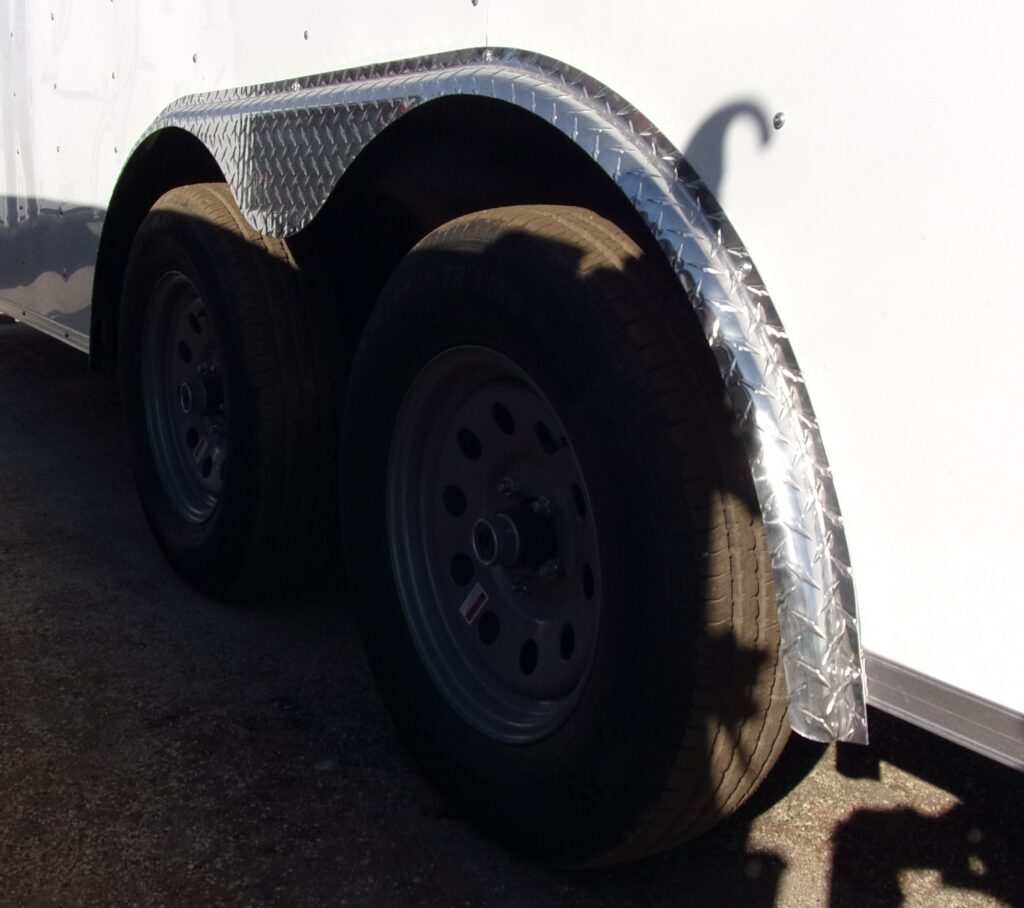

  • FENDER FLARE: SMOOTH TANDEM
  • BOTTOM TRIM: 1-1/2″
  • TOP TRIM: 2-1/2″

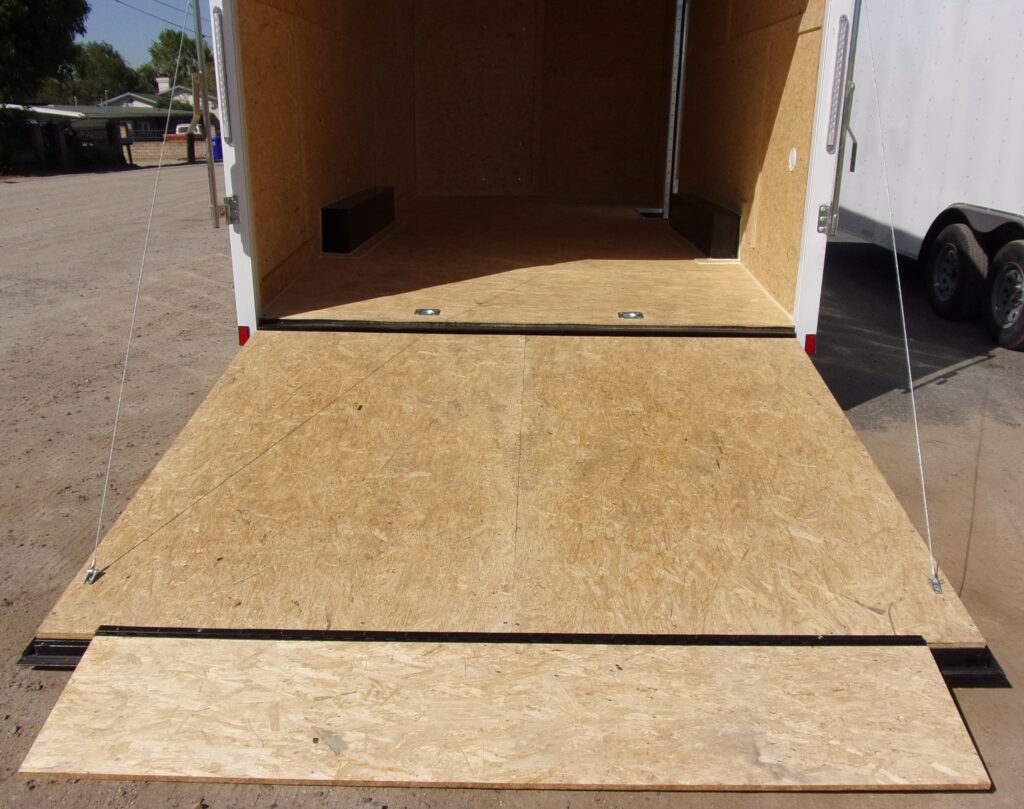

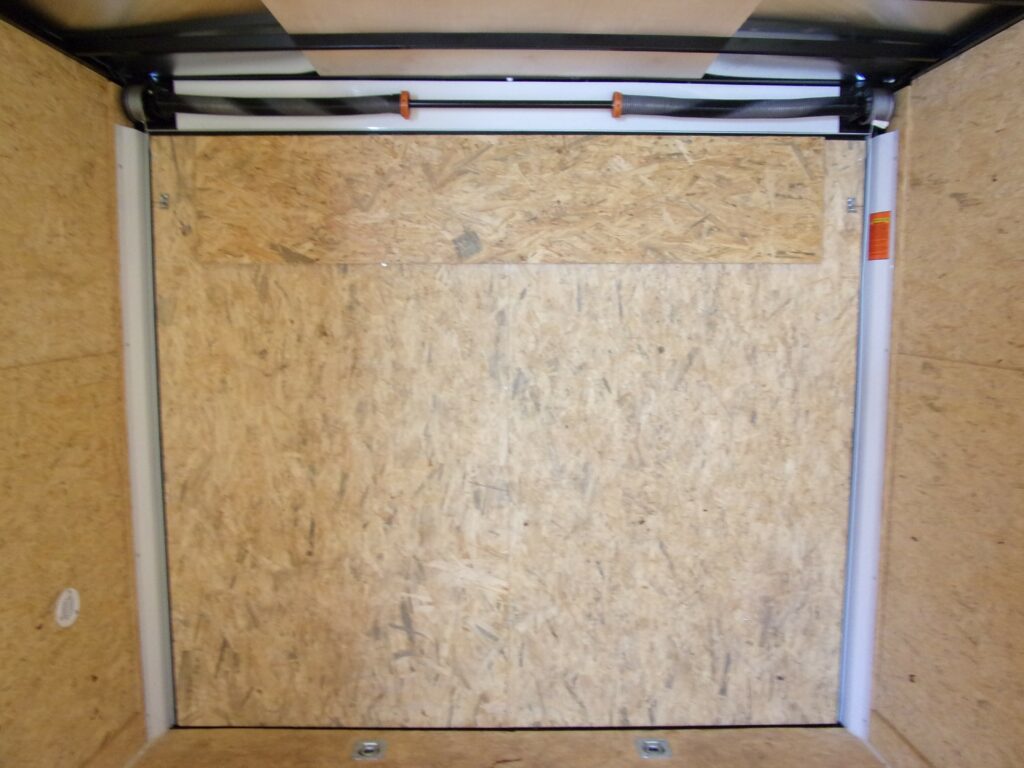

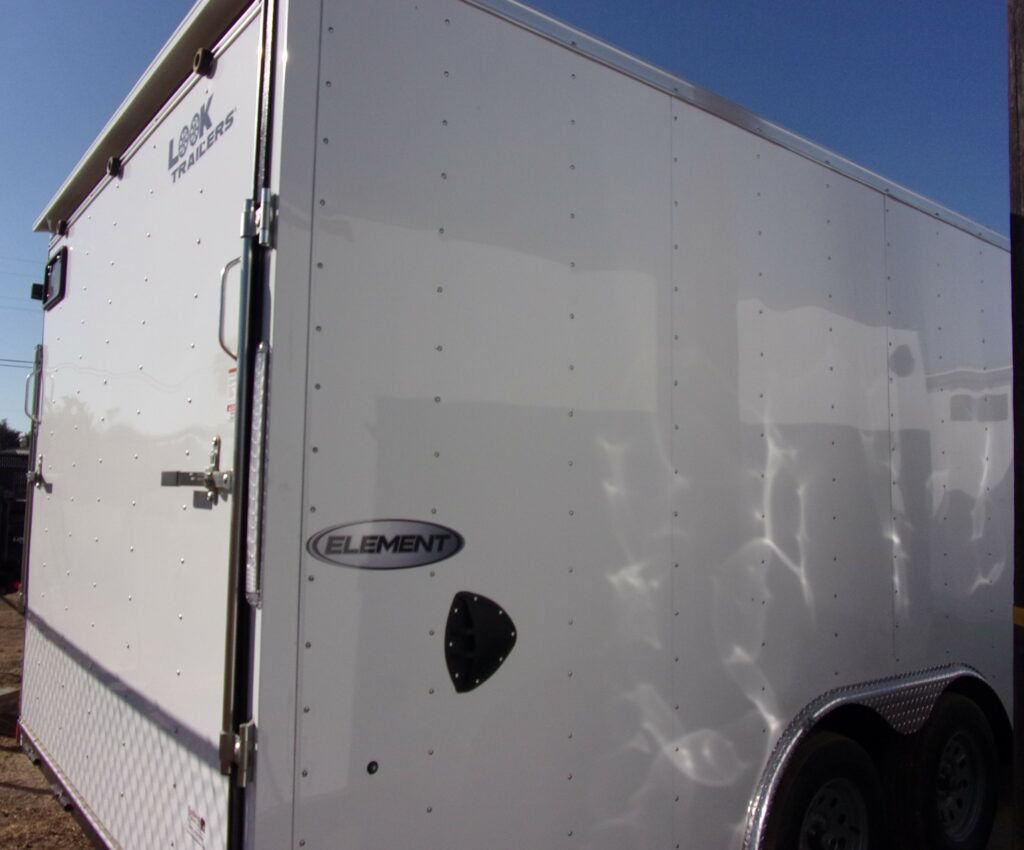

  • REAR DOOR: 400 SERIES RAMP DOOR/ SPRING ASSIST w/(2) BAR LOCKS AND LARGE J TRIM AND DRIP RAIL
  • REAR DOOR: 16″ RAMP EXTENSION

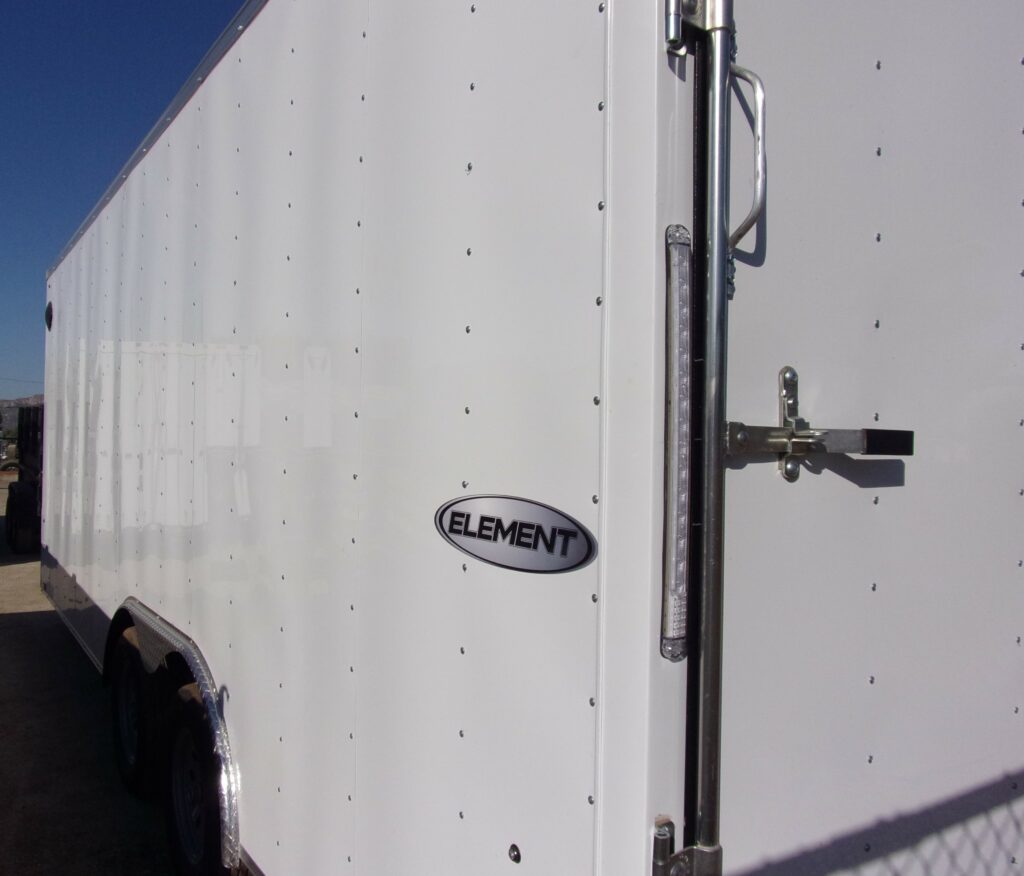

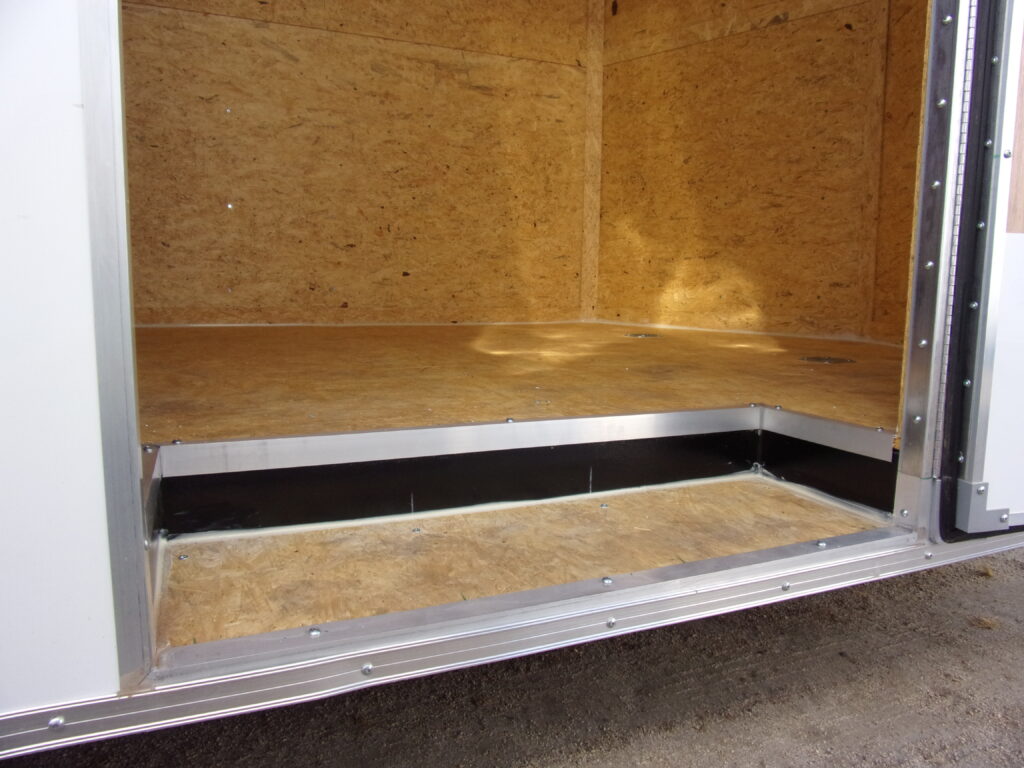

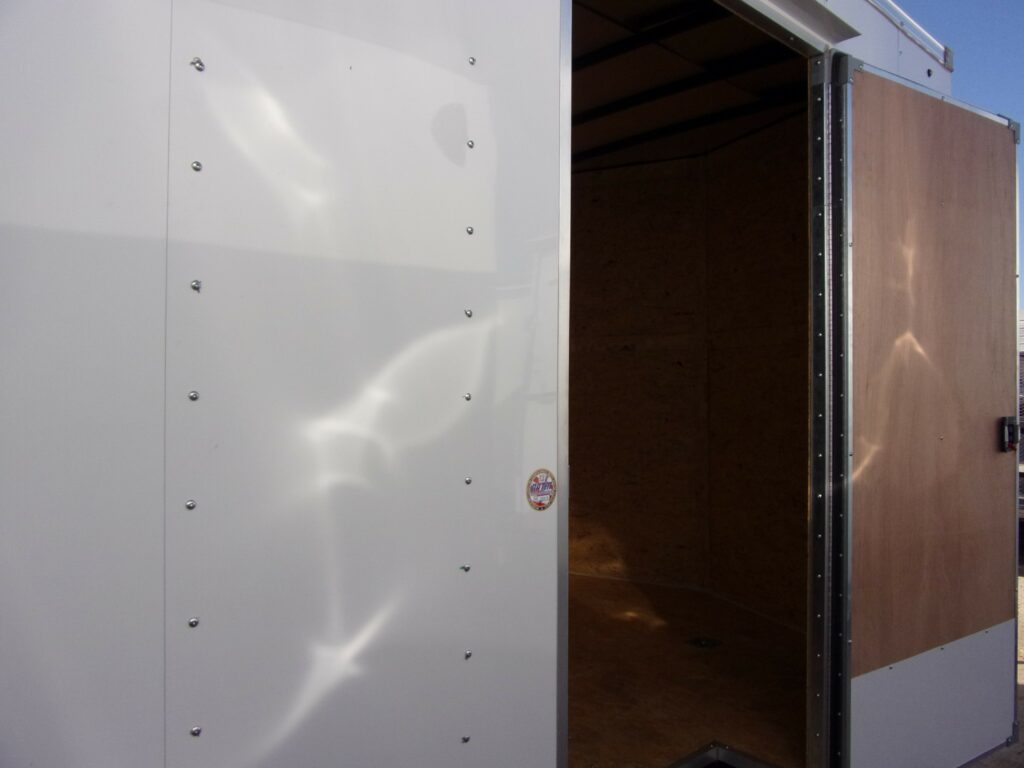

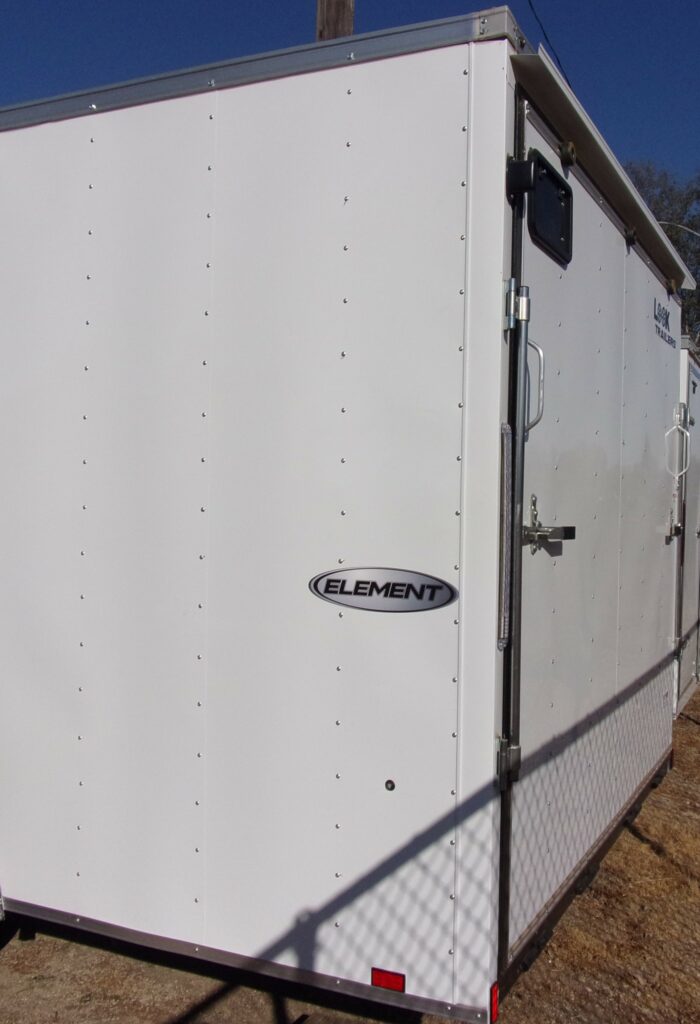

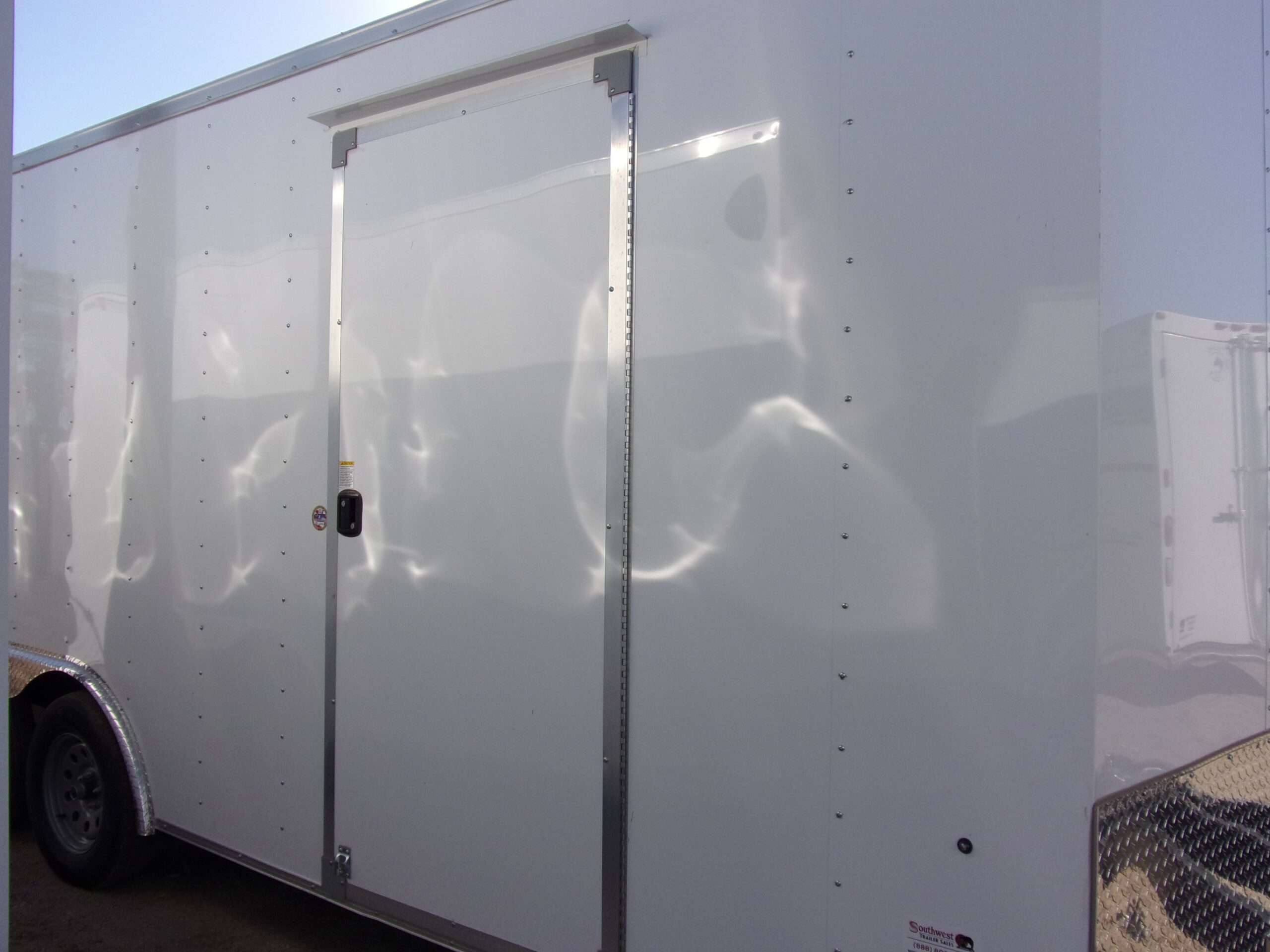

  • SIDE DOOR: 36w X 78h C/S F/L RECESSED STEP w/METAL HOLD BACK START 36″ FROM FRONT
  • VENT: (2) SIDEWALL FLOW THRU VENTS
  • LICENSE PLATE LIGHT: YES
  • CLEARANCE LIGHT: BULLET LED RED/ AMBER LENS
  • TAIL LIGHT: (2) LED RED LENS SLIMLINE w/INTEGRATED BACKUP LIGHT
  • DOME LIGHT: (2) LED DOME LIGHTS EVENLY SPACED
  • 12 VOLT SWITCH: C/S DOOR
  • CABLE: 7 WAY
  • BREAKAWAY: BREAKAWAY BATTERY w/SWITCH

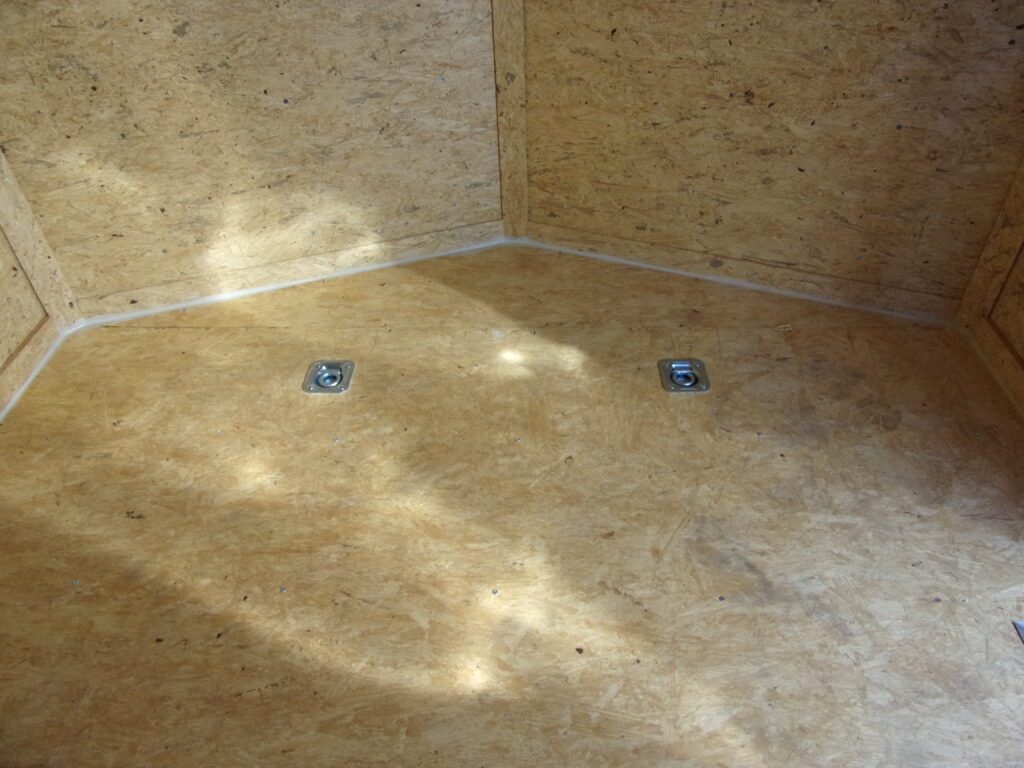

  • HD D RING: (4) 5000# RINGS 36″ ON CENTER 2-1FT 2-19FT FROM REAR

STANDARD FEATURES

  • .Lengths from 16′ – 24′
  • Flat Top with V-Nose Front
  • Round Top with Radius Front
  • Tandem Axle
  • 36″ Door with Flushlock and Recessed Step
  • 2000lb. Tongue Jack
  • Ramp Door with Spring Assist
  • 16″ Ramp Extension
  • Beavertail
  • (4) Heavy Duty D-Rings
  • Unlimited Options
  • Limited 3 Year Warranty
  • *Standards and features vary by plant and location. Please consult with your local dealer.

GVWR 7000# UNLADEN 3414# PAYLOAD 3586#

  • VIN# 5JW0C2022PF040540 / STOCK #8176
